Description

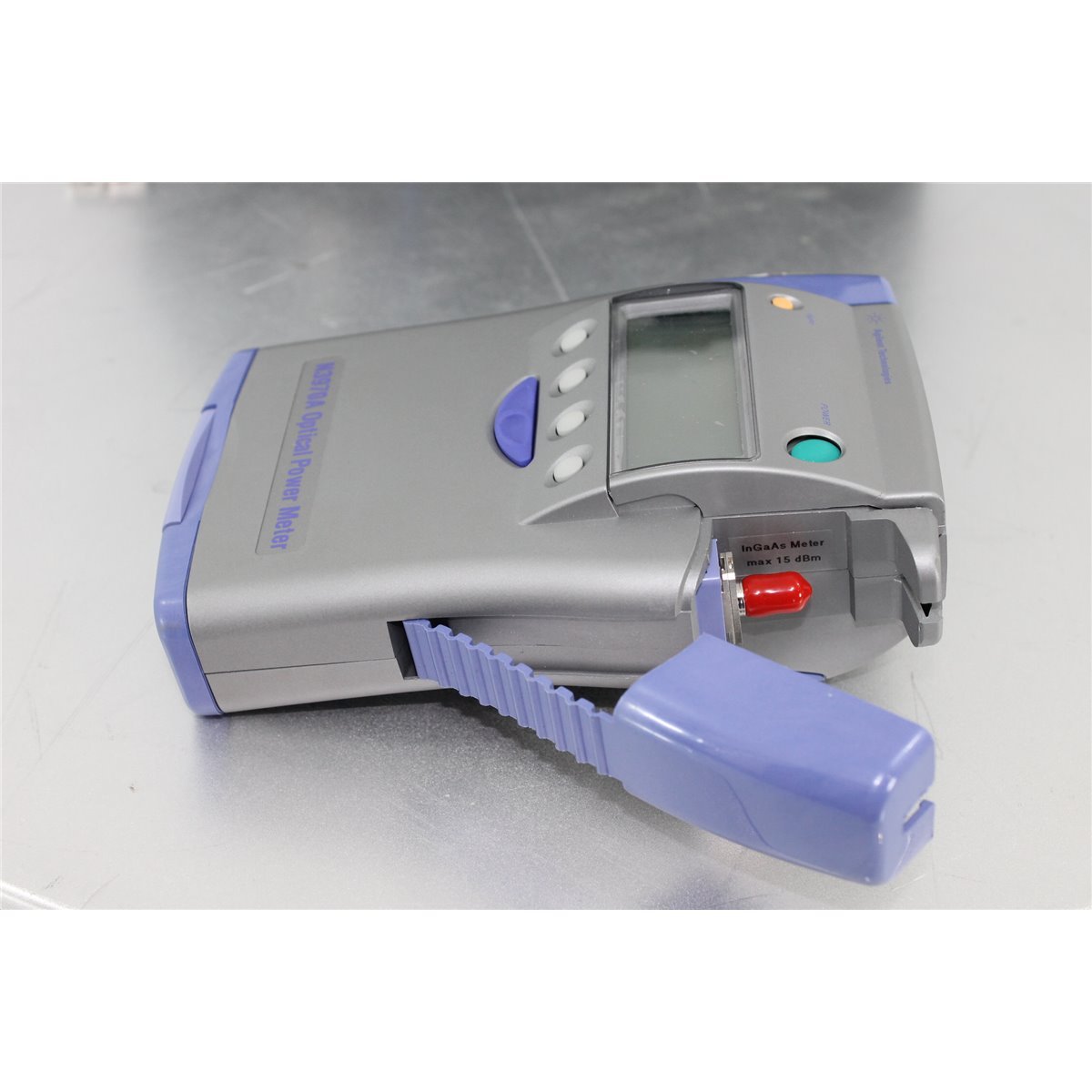

Specifications at glance for the N3970A
- Sensor Element: InGaAs
- Wavelength Range: 850 to 1650 nm
- Calibration Wavelengths: 850, 1300, 1310, 1550 nm
- Power Range: +5 to -60 dBm (850 nm) and +5 to -70 dBm
- Maximum Input Power: + 15 dBm
- Optical Input: Non contact, Removable Connector Adapter
- Display Type: LCD, 4 Digits
- Display Resolution: 0.01 dB, 3 digits in linear mode
- Display Units: dB, dBm, nW, µW, mW
- Power: 2 Alkaline C cells
- Communication; RS232, 3.5 mm jack connector

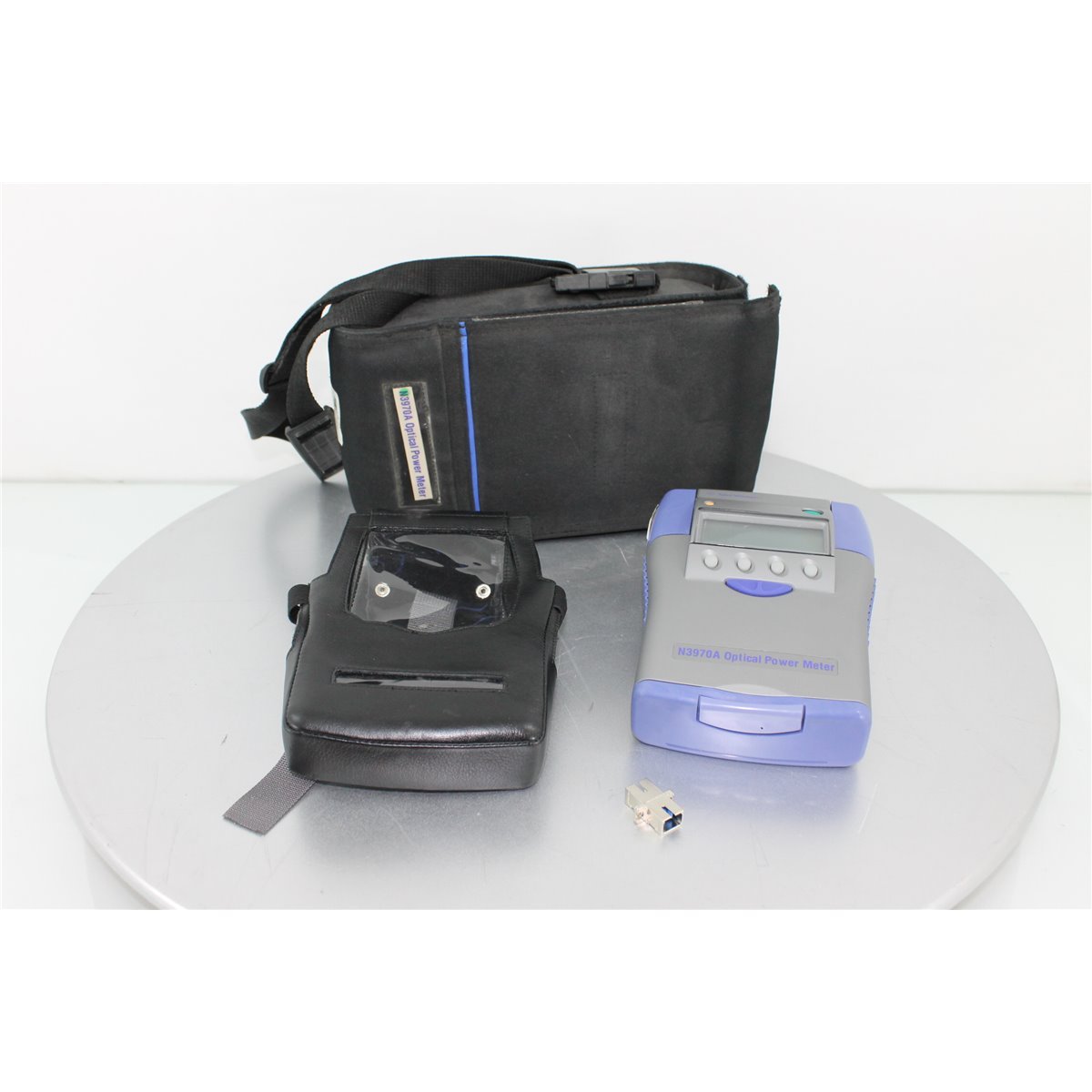

Following accessories are not included in pricing and might not be available
- Removable Connector Adapter FC, SC, ST
- Manual
- Batteries
- Carry strap
- Pouch
- Protective Holster
- Power supply 9 V DC
