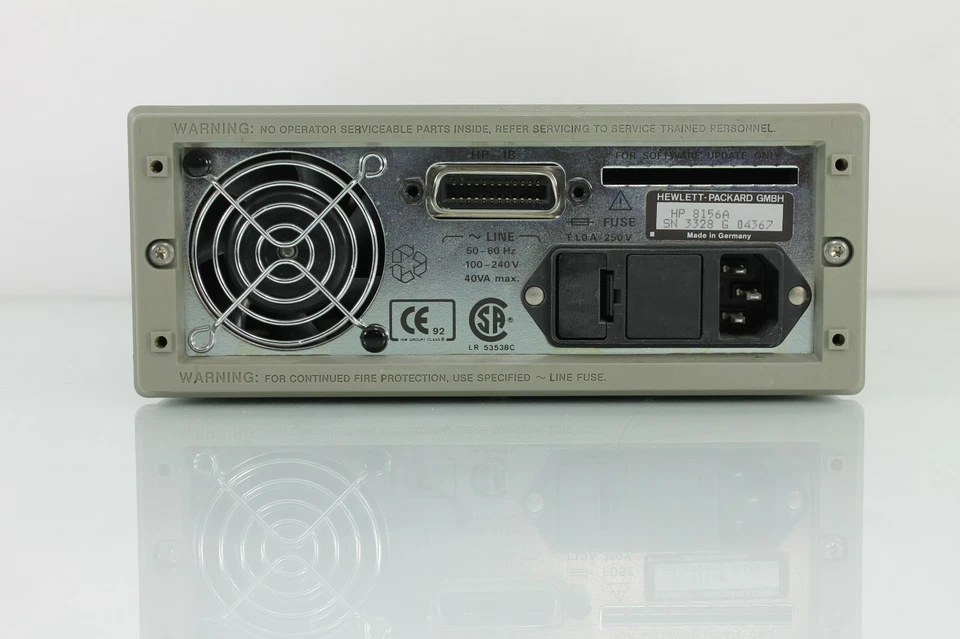

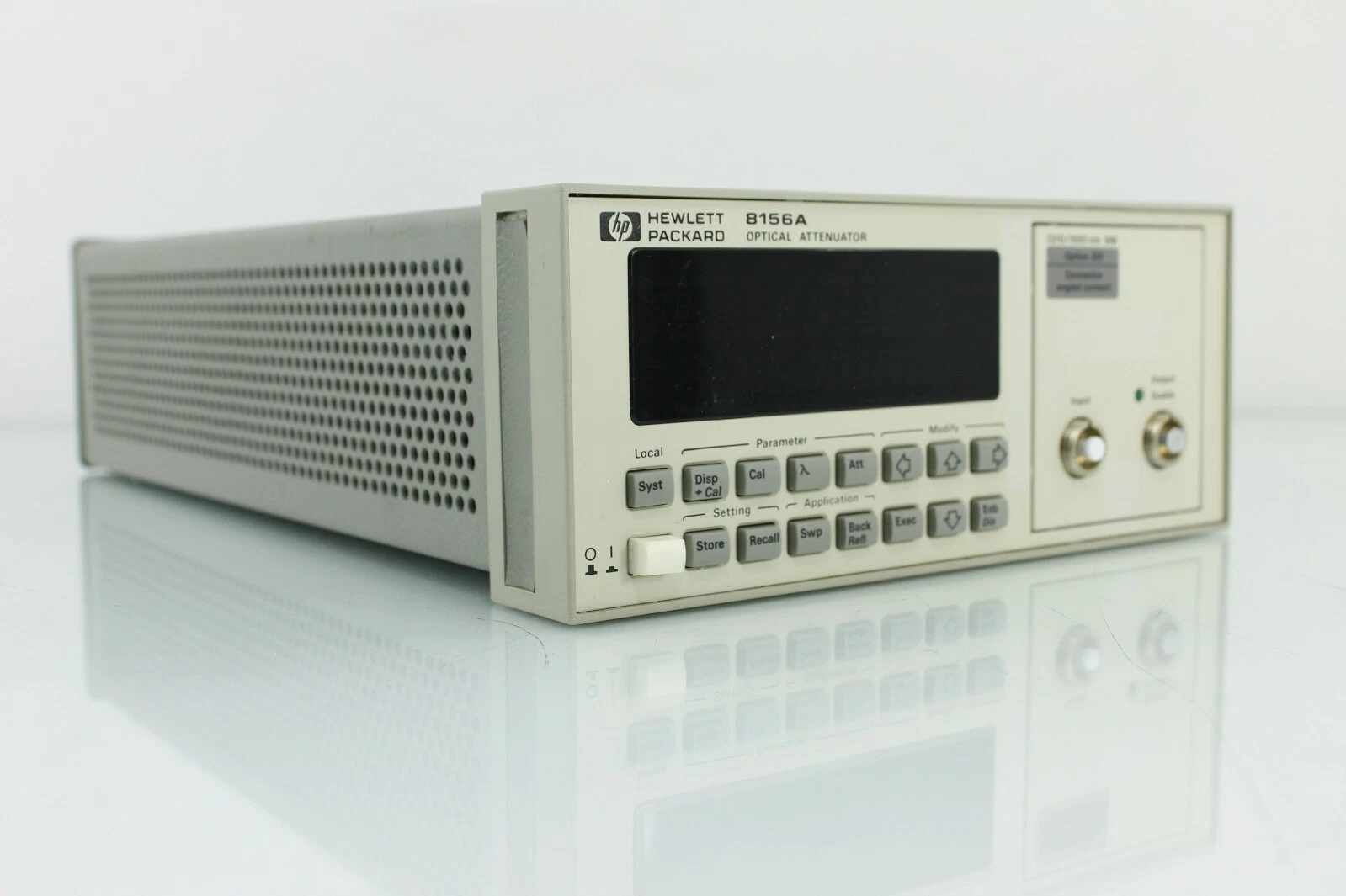

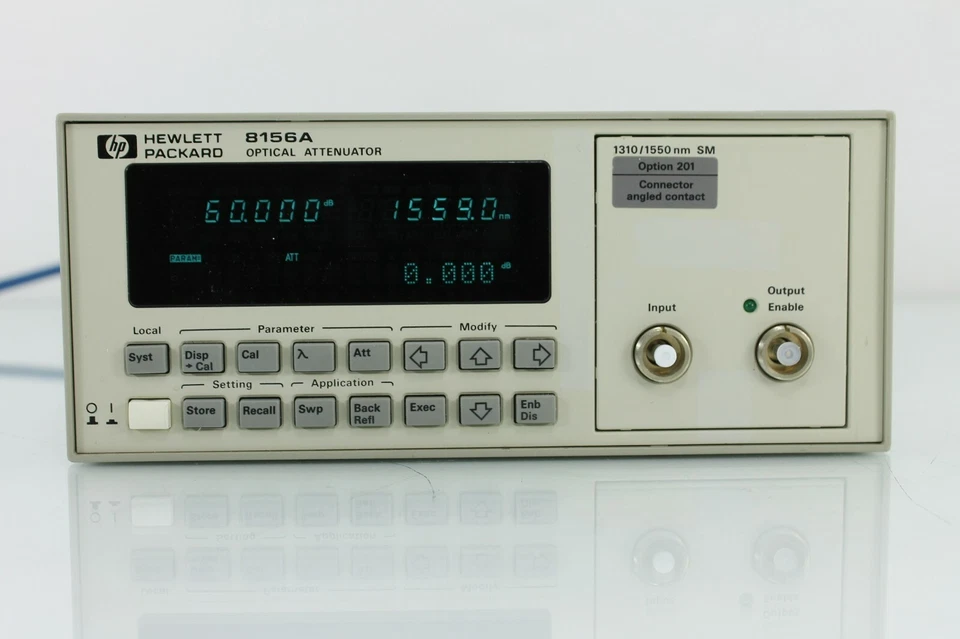

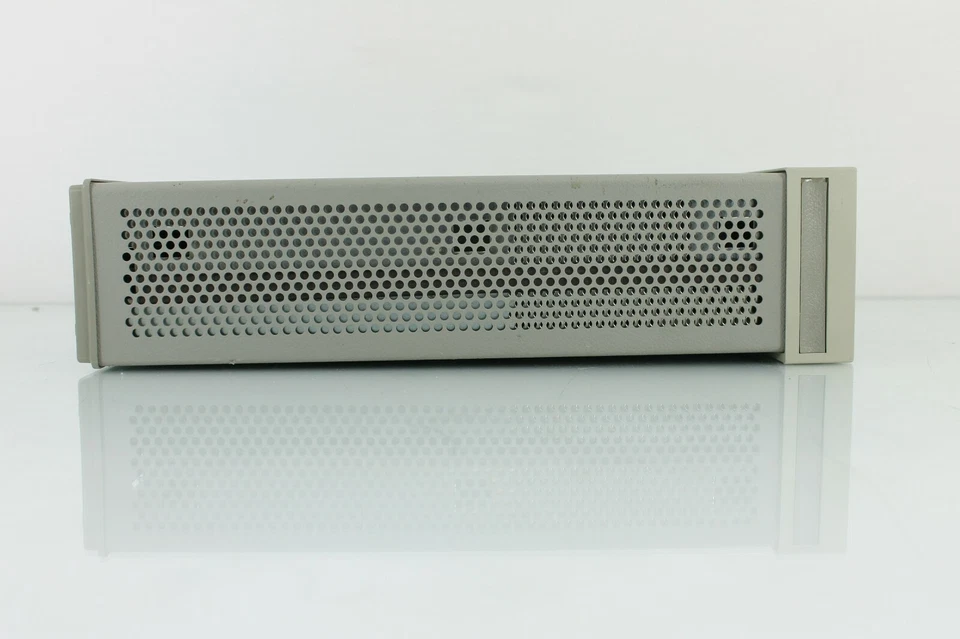

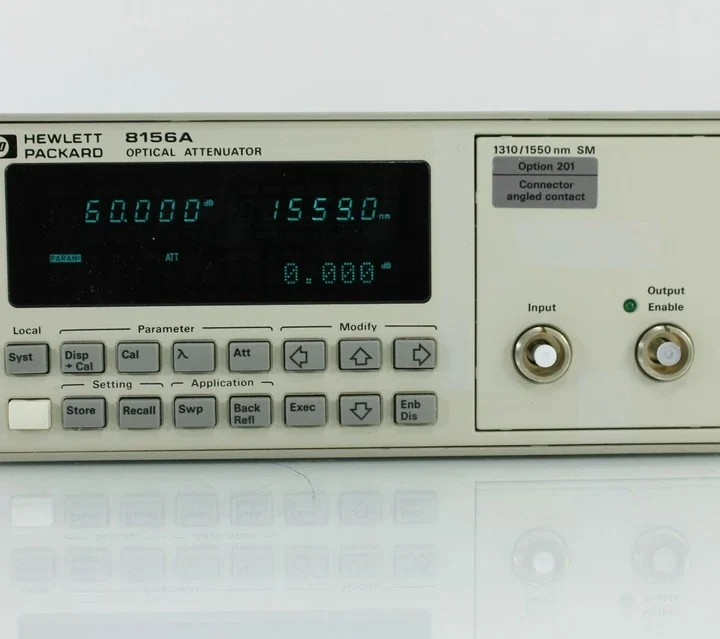

Agilent HP 8156A Optical Attenuator with Option 201 – Calibration included

1,099.00 $

  • Handling time : We always test the equipment just before we ship, therefore our handling time varies and is usually below 5 days after payment has cleared.
  • Shipping fine print : We ship with UPS Worldwide Expedited, with 1000 USD insurance value. Additional coverage can be provided, contact us. Duties and taxes are never included and are the buyer responsability.
  • Warranty fine print : Note that this is not a Right of Return.  We will only accept a return if the unit is defective within the warranty period.  Return shipping is at your cost and prepaid. Warranty shall become null and void should it be determined that the equipment was subjected to undue abuse, involved in any mishap, incorrectly wired and/or used/maintained in a manner contrary to the manufacturer’s published instructions. Warranty period starts upon reception of the item at the delivery place.



1 in stock

Category: Tag: Brand:
Stock 1 in stock
Categories

Description

  • Wavelength Range: 1200 to 1650 nm
  • Attenuation Range: 60 dB (excluding insertion loss)
  • Fiber Type: 9/125 µm single-mode
  • Connector Type: Angled Contact Interface
  • Return Loss: >60dB
  • Insertion Loss (typ.): 2.5dB
  • Attenuation Accuracy (linearity) Typical: <±0.1dB
  • Resolution: 0.001 dB
  • Maximum Input Level: 23dB
  • Option 201: High Performance, High Return Loss Version
  • Two connectors interfaces (8100 series) are required for each Agilent 8156A, these connectors are sold separately.
